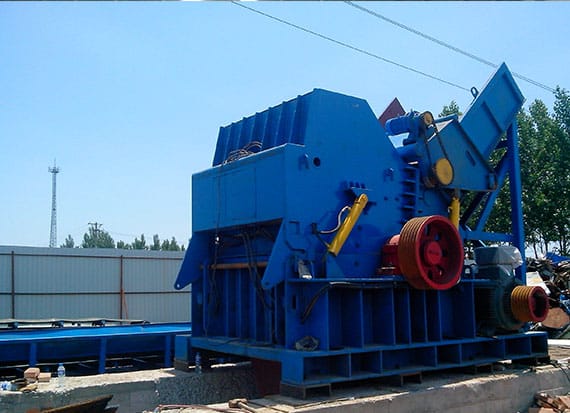

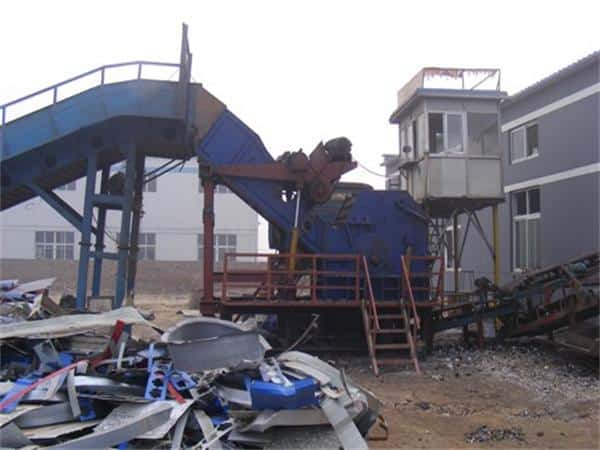

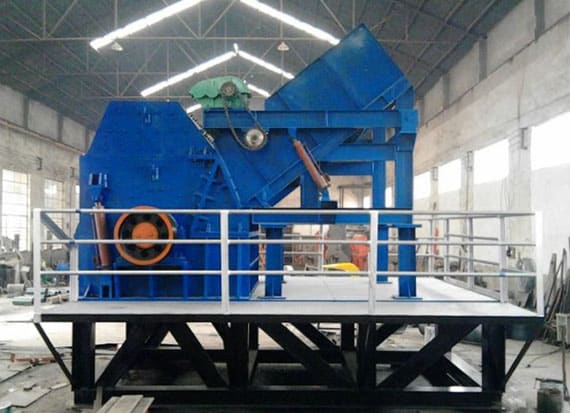

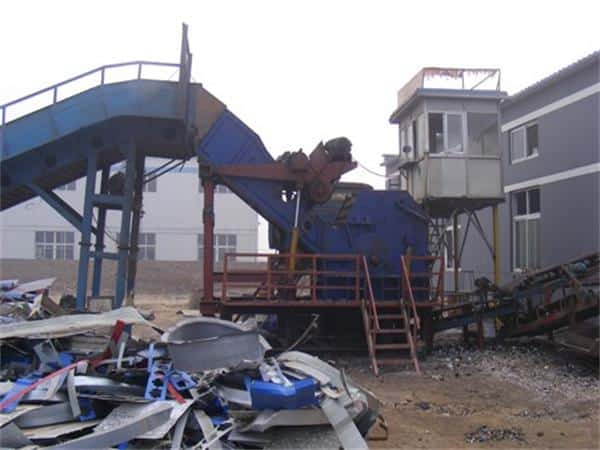

Waste aluminum crushing and sorting equipment is a kind of crushing equipment used to deal with raw aluminum, machine aluminum, broken bridge aluminum, aluminum alloy, mainly used for raw aluminum, machine aluminum, broken bridge aluminum, aluminum alloy crushing and sorting operation. The whole production line mainly includes: crusher, magnetic separator, vibrating feeder, eddy current separator, conveyor and so on. Process: Crushing through a crusher, and clean the surface of the paint and dirt. During crushing, dust removal equipment is used to remove light materials and dust, and then after magnetic separation and eddy current separation, it is classified and recycled. The whole system adopts PLC control, dynamic real-time monitoring. It has the characteristics of low energy consumption per unit, large processing capacity, good economy, low maintenance cost, good processing effect and low capacity requirements for input power.
Waste aluminum crushing and sorting equipment is a kind of crushing equipment used to deal with raw aluminum, machine aluminum, broken bridge aluminum, aluminum alloy, mainly used for raw aluminum, machine aluminum, broken bridge aluminum, aluminum alloy crushing and sorting operation. The whole production line mainly includes: crusher, magnetic separator, vibrating feeder, eddy current separator, conveyor and so on. Process: Crushing through a crusher, and clean the surface of the paint and dirt. During crushing, dust removal equipment is used to remove light materials and dust, and then after magnetic separation and eddy current separation, it is classified and recycled. The whole system adopts PLC control, dynamic real-time monitoring. It has the characteristics of low energy consumption per unit, large processing capacity, good economy, low maintenance cost, good processing effect and low capacity requirements for input power.

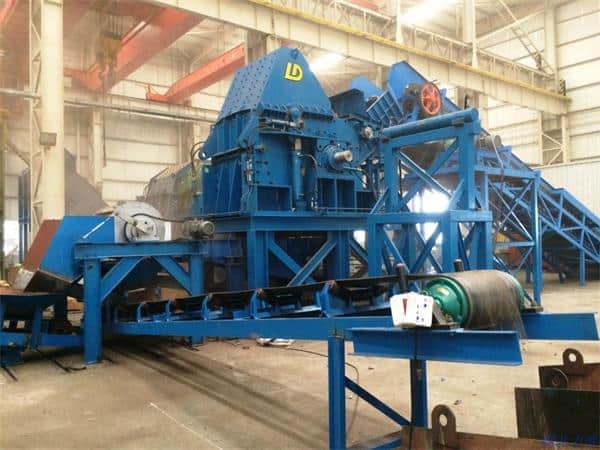

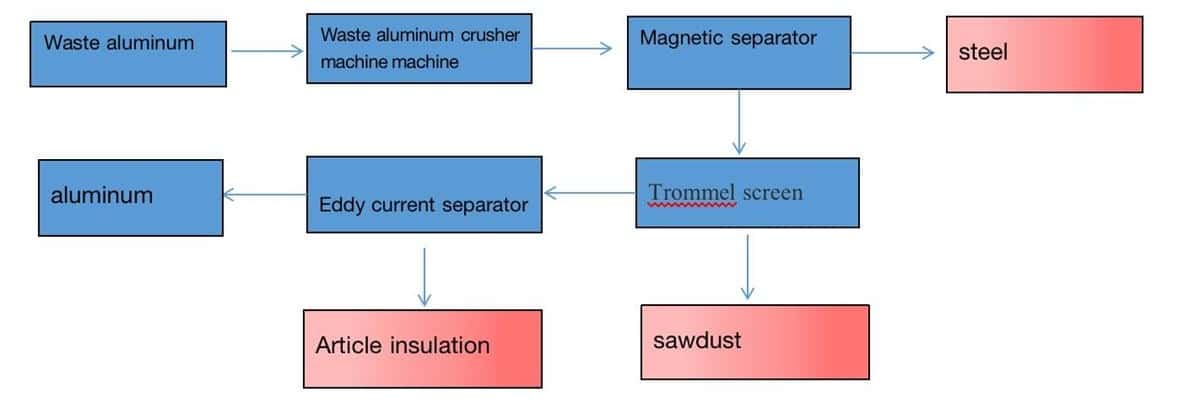

Waste aluminum alloy crushing and sorting equipment is composed of waste aluminum crusher, magnetic separator, roller screen, eddy current separator and dust collector. The material is sent to the waste aluminum crusher by the conveyor for fine crushing, the broken material will be separated by the magnetic separator iron, and then into the roller screen will be separated by different sizes of materials, materials of different sizes are respectively into the eddy current separator, the use of electromagnetic induction to separate aluminum and plastic. The whole system adopts PLC control, dynamic real-time monitoring. It has the characteristics of low energy consumption per unit, large processing capacity, good economy, low maintenance cost and good treatment effect. The whole production line adopts pulse dust removal, no dust pollution during operation.
| Model | input size （mm） | capacity（t/h） | motor（kw） | weight
ton |
| MX-75 | 1000 | 2.5-3 | 75 | 7 |
| MX-132 | 1300 | 5-6 | 132 | 8.5 |
| MX-160 | 1300 | 6-8 | 160 | 11 |
| MX-200 | 1400 | 8-10 | 200 | 12.5 |
| MX-280 | 1600 | 10-12 | 280 | 16 |
| MX-315 | 1600 | 15-20 | 315 | 27 |
| MX-450 | 1800 | 20-30 | 450 | 33 |
| MX-630 | 1800 | 25-35 | 630 | 45 |
| MX-900 | 2200 | 40-50 | 900 | 51 |
1.The production line layout is reasonable, can handle a variety of materials, high economic efficiency, large processing capacity.
2.The use of heavy hammer crusher, make large high strength materials can be quickly and fully disintegrated.
3.PLC control, high degree of automation.
4.Multi-channel sorting, sorting clarity reaches 99%.
5.Centralized dust removal, no dust leakage.

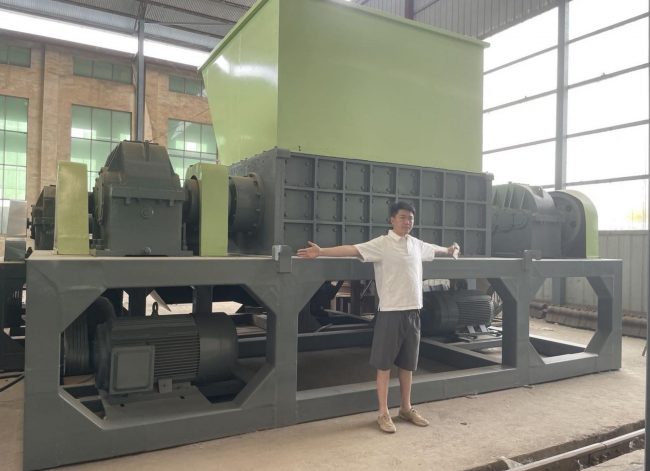

The metal shredder is mainly used for crushing scrap metal, increasing its bulk density for transportation and recycling. This equipment is widely used in shredding paint drums, diesel drums, thin iron sheets, car shells, metal briquettes, metal plate scraps, and other scrap metal materials

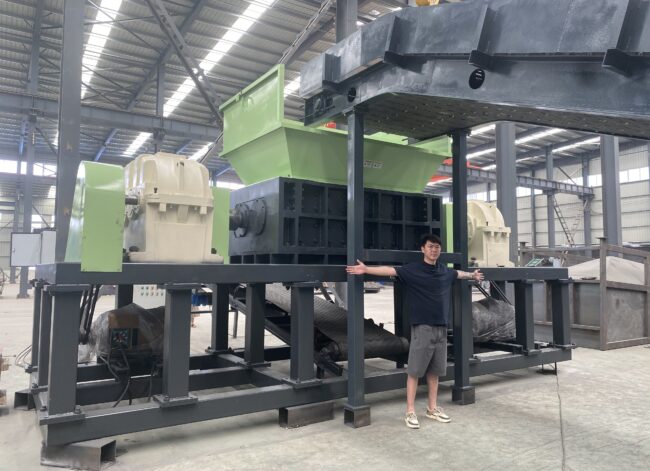

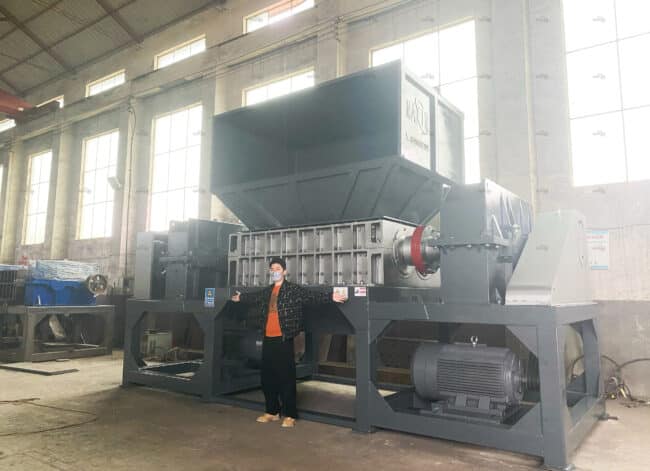

It is suitable for industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, household waste recycling, plastic recycling, tire recycling, paper making and other industries. Tearing objects such as all kinds of hollow containers, waste household appliances, waste plastic and rubber products, scrap steel and iron, industrial scraps, municipal garbage, household garbage, electronic waste, scrapped vehicles, etc.

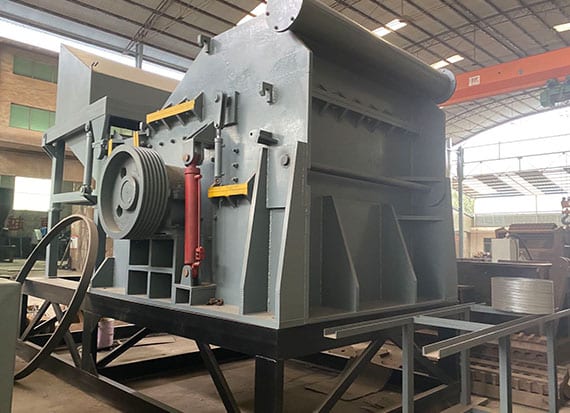

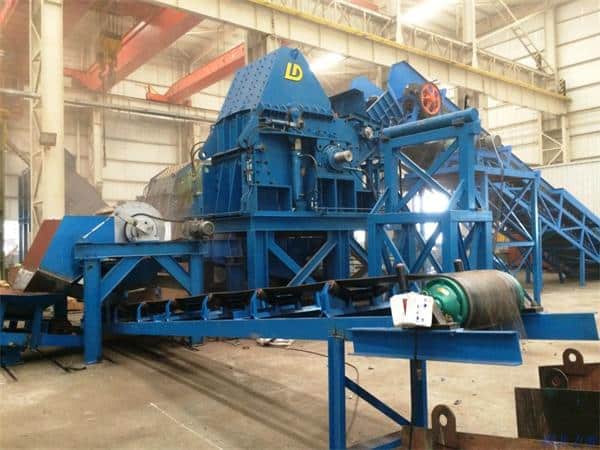

Scrap Steel Hammer Shredder is a crushing equipment used to treat scrap steel. It is mainly used for crushing scrap car household appliances and light and thin scrap steel.
Suitable for shredding materials, such as plastic ,wood, paper, aluminum cans, metal, waste tire , car body ,etc
