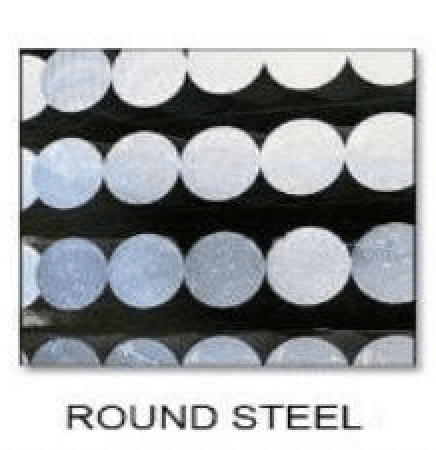

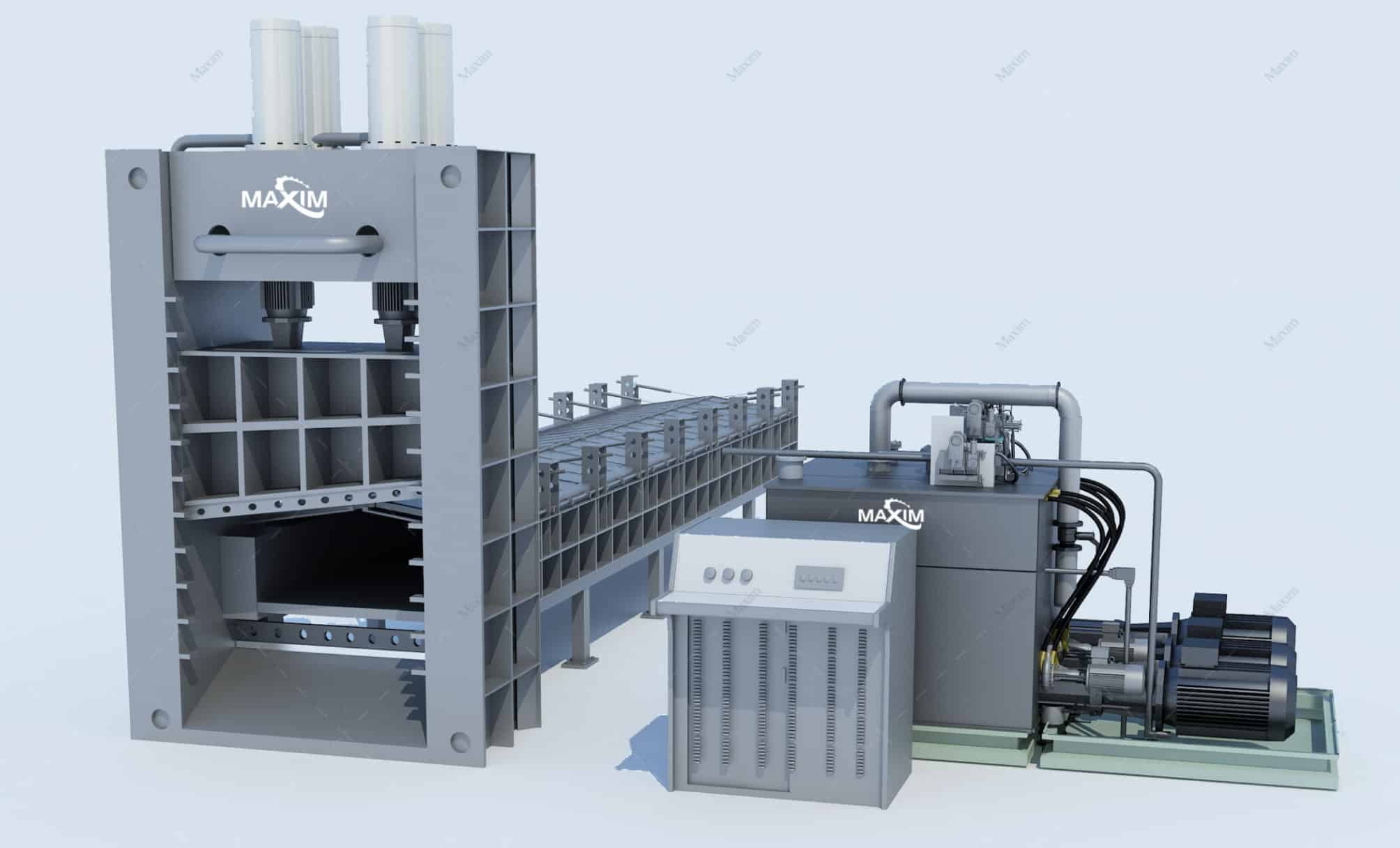

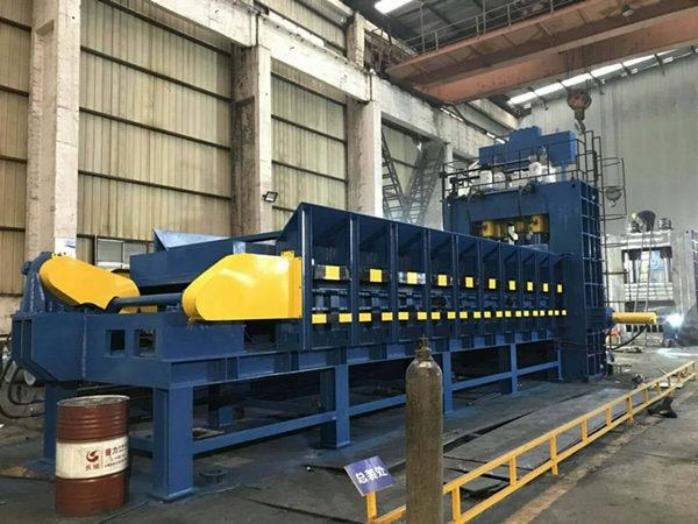

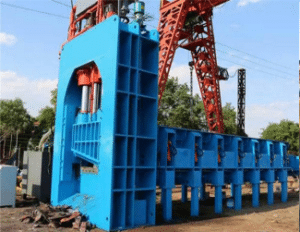

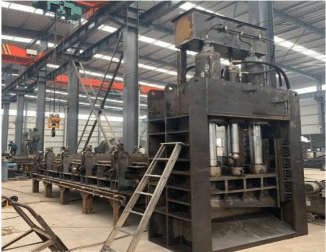

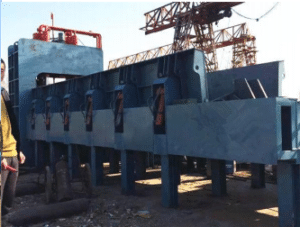

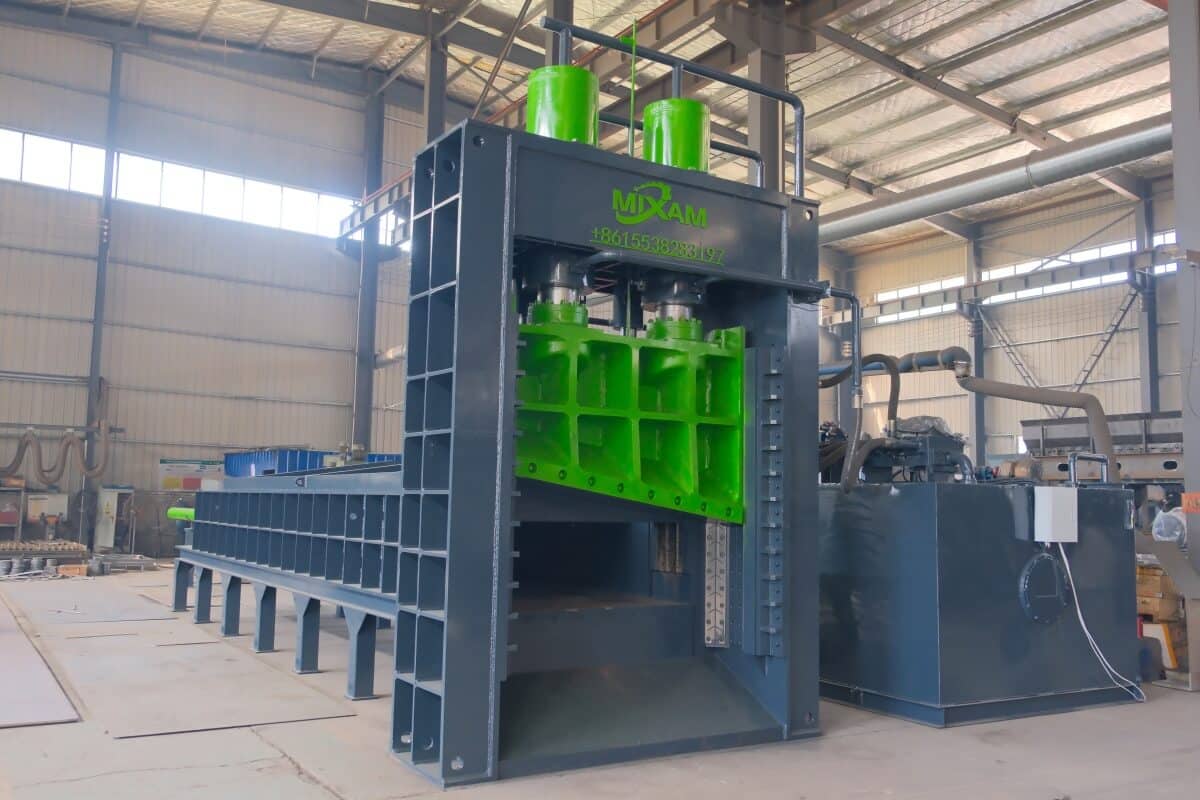

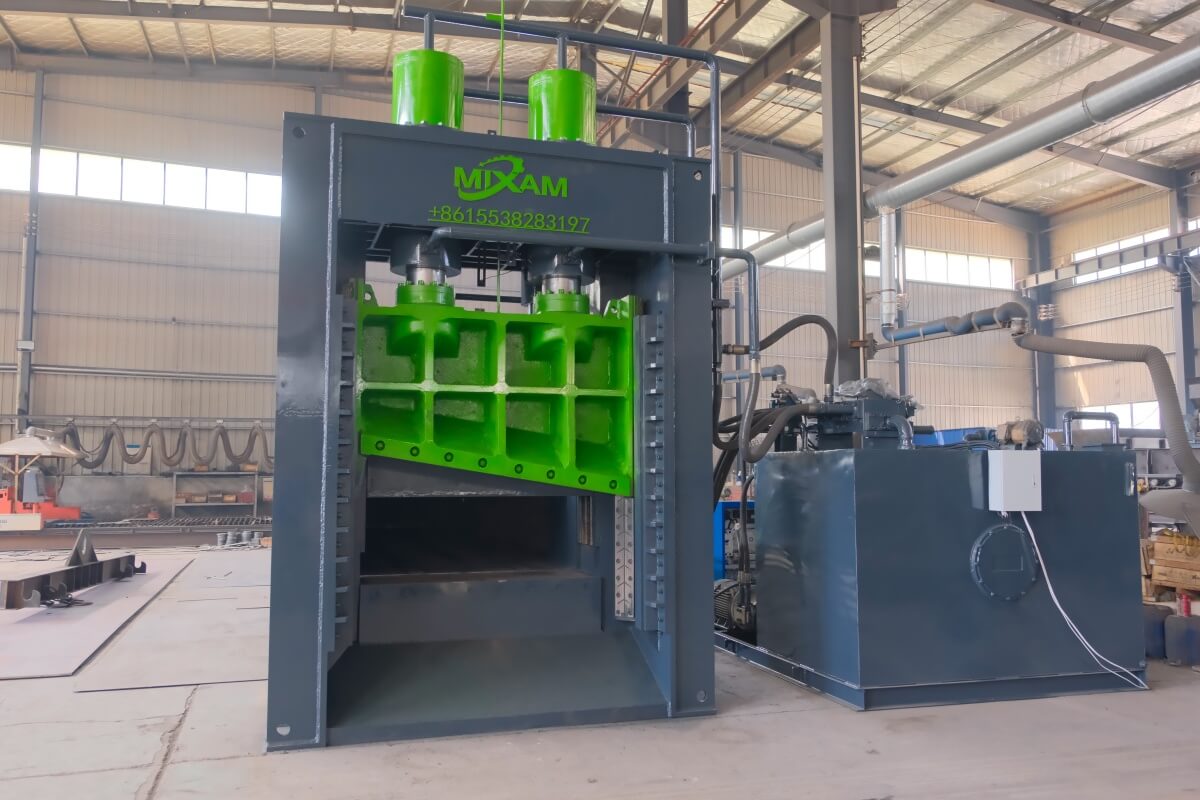

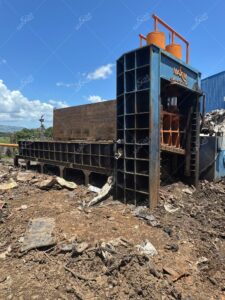

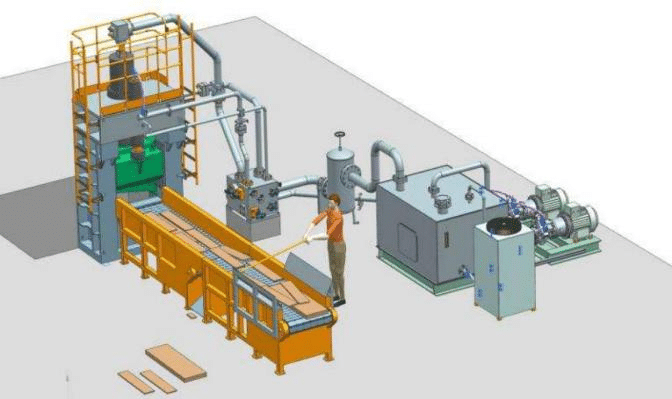

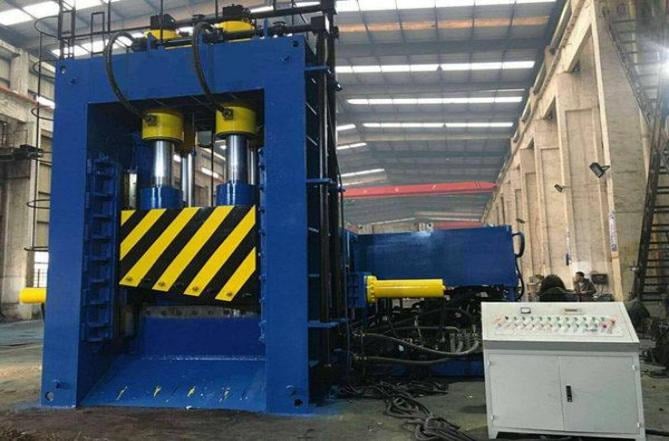

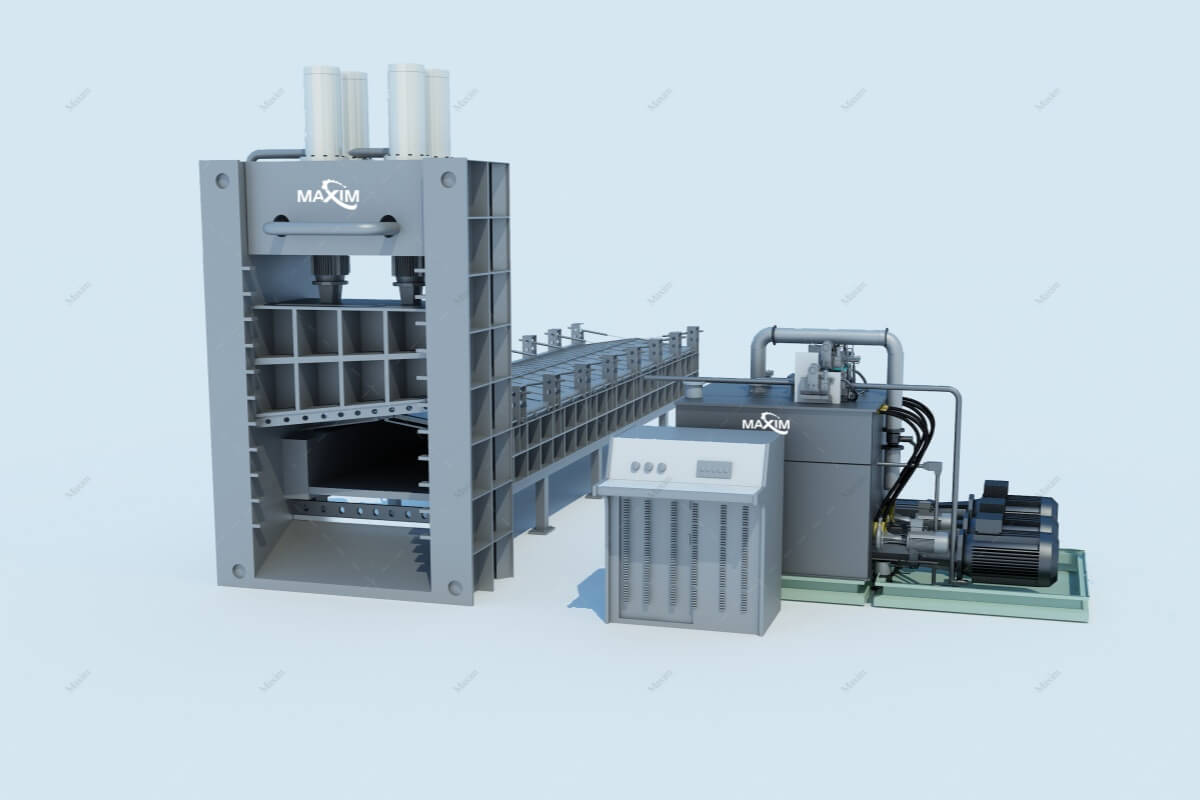

The gantry shear is a kind of equipment suitable for cutting heavy scrap steel. The width of the conventional shears with the tonnage of 200-1800 tons produced by our company is 600-2000mm, which is suitable for light steel, steel bar, steel plate, nickel plate, steel plate, round steel, steel pipe, scrap, scrap, scrap, light metal structure, stainless steel, metal block, car body, aluminum alloy, copper The crushing and processing of heavy wastes and winding materials that cannot be handled by scrap crushing equipment such as material, scrap iron, steel wire, automobile, metal pressing block, etc. the working efficiency of this series of equipment can reach 3-6 times / min according to the model due to the use of new electro-hydraulic control system and reinforced oil cylinder. The application of this machine solves the problem of crushing and regeneration of large heavy waste charge. It is widely used in steel rolling plant, metallurgical plant and scrap treatment and recovery unit. It is an effective equipment for metallurgical charge treatment and profile cutting.

1. The gantry shear machine adopts hydraulic transmission, compared with the mechanical transmission shear machine, with small volume, light weight, small inertia, low noise, smooth action, easy to operate, flexible, large shear section, easy to adjust the scissors mouth,safe operation and use and other advantages, It is easy to achieve overload protection.
2. The gantry shear machine has manual, automatic and remote control functions, It is easy to operate and control, scissors mouth in the process of work to start shear and stop at any position and according to the size of materials to be cut, we can arbitrary control shear mouth size so as to achieve economic benefits.
3. The gantry shear machine is designed to be fast. Without increasing the power of the motor and the displacement of the oil pump, the speed remains fast under the large shear force(about 400-1600 tons), and the speed will be automatically changed when the shear force become larger.then Restore the original shear force, thus it almost double work efficiency

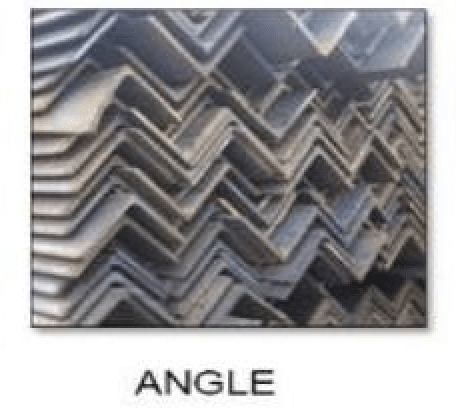

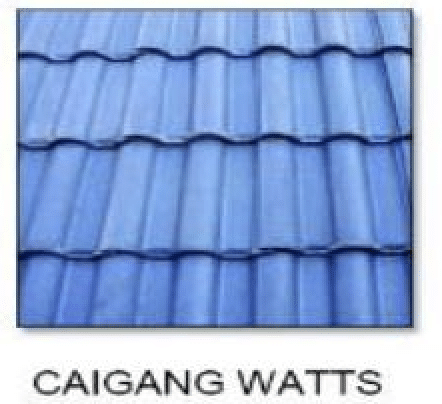

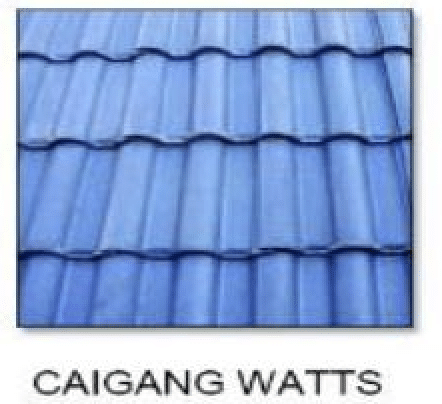

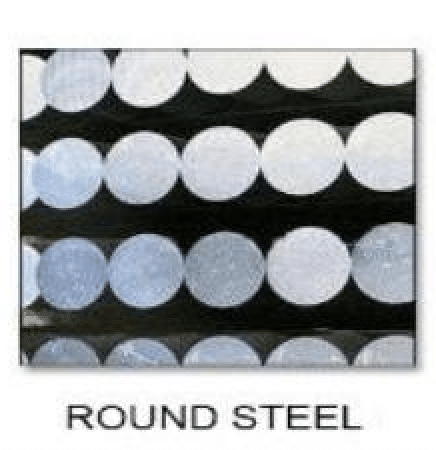

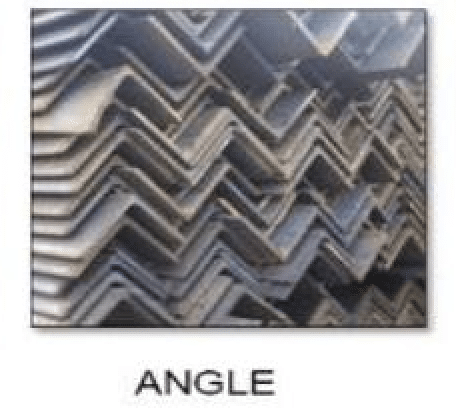

Used metal crocodile shearing machine is suitable for metal, sheet iron, cast iron, sheet iron, light sheet material, steel, color steel tile, scrap, scrap iron, aluminum alloy, channel steel, angle steel, angle iron, copper plate, metal plate, aluminum profile, waste steel bar, aluminum plate, iron plate, steel plate, round steel and used metal

Model Shear Force (ton) Processing
Capacity
(mm) Length Of Knife Edge (mm) Shearing Time
Per Minute
Power
(kw)
MX-LMJ-315 315 3~5 1200 2~4 22*2
MX-LMJ-400 400 4~7 1400 2~4 37*2
MX-LMJ-500 500 5~8 1500 2~4 45*2
MX-LMJ-630 630 8~ 10 1600 2~4 45*3
MX-LMJ-800 800 12~ 15 1800 2~4 55*3
MX-LMJ- 1000 1000 15~20 2000 2~4 55*4
MX-LMJ- 1200 1250 20~30 2500 2~4 55*4
